Another Keyboard to Dishwasher Experiment – Microsoft Comfort Curve 2000

Today I wanted to report on my latest experiment; using a dishwasher to help me clean a Microsoft Comfort Curve Keyboard 2000.  There are many posts on the internet about this, and after some research, I decided to give it a try, as I had just inherited my keyboard from work.

First decision was; How much should I dismantle the keyboard?  Some people have tried running the whole keyboard through the dishwasher, but this typically seems to be followed by letting it dry for days afterwards, and involves some risk because the electronics get wet.  Some suggest stripping the electronics out of the keyboard, and washing all the rest.  I decided to prise off the key-tops and dishwash those, but leave the main frame safe and dry.

Removing the Keys

Before removing any keys, make sure that you take a photo or have access to a reference to be sure you know where to put each key back!  On the whoe there are few surpsises, but things like the cursor keys would be a little easier with a reference photo.

I found that the carefully pulling on the top of the keys on this keyboard tended to have the best results in terms of getting the keys to pop off.  It was a little bit like playing tiddly-winks.  I used a letter-opener to get under the keys as much as possible before prising them up, and on-the-whole this worked fine; it was a little thicker than a typical cutlery knife, but a knife would probably have done the job just fine.

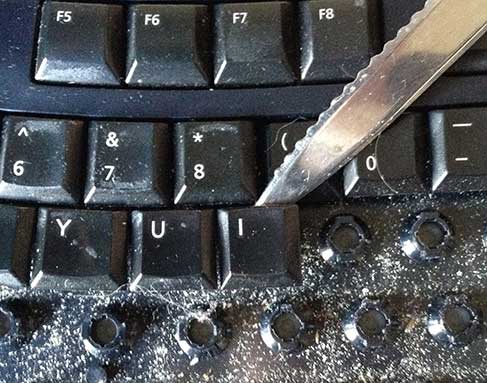

A letter opener or knife can be used to remove keys from a keyboard

Using a Letter Opener to Remove the Keys. There is an incredible amount of dust behind the keys despite frequent ‘shakes’ of the keyboard before this process.

  • Take care with the larger keys; especially the space bar which I feared I might be near breaking. Remove the metal bars from the back of the larger keys.  They will probably be greasy and dirty! Keep all the metal bits safe and separate; I chose not to wash them assuming that it might lead to rusting in the worst case;
  • I decided not to try and remove the smallest keys on the keyboard (e.g. non-standard web-browsing and volume keys in addition to the standard 102 keys); and even the Escape Key was too difficult to remove because of the way the frame of the keyboard is designed.

Standard Cleaning

I used a vacuum cleaner and brush attachment to get rid of the majority of the dust under the keys, and standard keyboard cleaner and tissues to clean the rest of the frame.

Using the Dishwasher

The keyboard base and small metal bits were kept separately, and did not go into the dishwasher. I chose to wash the keys in a porous bag intended for use washing small items in a washing machine, and placed it as spread-out as possible on the top rack.  I washed it on the lowest temperature setting, and did use dishwasher soap. A number of sites suggested a normal dishwasher drying cycle might be too aggressive, and fearing that it could melt the transfers on the keys I took it out about half-way-through the drying cycle.  I laid the keys out on a drying-towel to air-dry.

Clean but wet keys!

Keys from the dishwasher – before the drying cycle was complete

Replacing Keys

Once the keys had dried completely the process of returning them could start. Most keys simply click back into place, though some take a little joggling and reseating to get a key that presses up-and-down cleanly and without sticking.

As noted previously, the larger keys had little metal bars on the back of them. Refit them as follows:

Larger keys need metal support bars replaced

Before refitting, some keys need to have little metal support bars refitted

Now – I contemplated adding grease to the ‘arms’ and ‘hinges’ on the bars – but as it did not appear to be a problem not to do it, I left them clean to start with.

The metal supports need to be slid into receptacles on the keyboard base before refitting the key

Slide the metal support into the runners before rotating the key and pushing back into place.

As with any other key, the buttons should press in and release cleanly after refitting.

By this stage the keyboard should be looking pretty much normal again (but cleaner) – I think this photo emphasises even the tiniest bit of dust unfairly – but I can assure you that the areas between keys are essentially spotless, which they definitely weren’t before:

Finished and cleaned keys

The finished keys. The C key was already losing its transfer before the wash.

Testing

Once all the keys were refitted, it only remained to test the keyboard.  The problem with just relying on typing and using the keys is that some keys are less used than others.  I found the test software at KeyboardTester.com worked pretty cleanly – though it did not quite cover the 102 + extra keys on the keyboard; and some keys are indistinguishable in code.

Summary

The end results were pretty good in terms of cleanliness.  The dishwasher did not appear to harm the keys over and above the wear and tear that already existed.  I would say that I may need to try and reseat a couple of keys, as they are slightly more resistant than previously.  The Backspace key especially seems to be less responsive, but nothing to get too panicked about at this stage.  I’ll give myself a bit more opportunity to use the keyboard, and report back 🙂





One thought on “Another Keyboard to Dishwasher Experiment – Microsoft Comfort Curve 2000

  1. Thanks to your post and a video on YouTube, I just pulled out my old Microsoft Comfort Curve 2000 v.1 to replace a really bad brand new Logitech K350 wireless that is constantly disconnecting from the little receiver just two feet away. The Curve keyboard was very dirty. I decided to remove the 14 small screws from the bottom, and to my delight it totally separated the keys from the electronics. The piece of rubber (?) that covers the key contacts and circuit board were actually as clean as new. The reason is the upper part I took off just holds the keys in a plastic bracket that is screwed down to hold them in place. I didn’t want to have to deal with taking out all the keys, so I took that part to the sink and ran warm water over the top where the keys show. The bottom of it was clean. I added some dishwasher liquid and took a clean pastry brush and brushed all the keys and openings I could get to. When I rinsed it, the water turned cloudy, so it removed a lot of dirt. I did the brushing again with soapy water and rinsed again. The water was just a little cloudy. Then I used the sink sprayer to spray the key side really good. I kept shaking it up and down and rinsing it. Some larger particles of debris fell out. I did that until nothing further showed up. Then I shook the keyboard to make the keys flop in the up and down states, rubbed everything with a paper towel … did that again and again. After ten minutes of that (and shaking the keys in every possible direction) no more water appeared. Then I hit the keyboard, key side up, against the palm of my hand. More water, but not a lot, appeared and was wiped off. After doing that several times, no more water appeared.

    I put the whole thing back together — it just snaps in place and the 14 screws are phillips head and easy to tighten.

    If you do take one apart, make sure to lay the screws out in the pattern they go back in. The inner screws are smaller than the outer ones.

    Plugged the 2000 back in and it works and looks like new. It is much quieter than the Logitech. I’ll stick with this 2000 because it should last until keyboards are not required for computers 🙂 And it’s easy to keep clean!

    BTW, when I was bouncing the part I cleaned first one direction and then the other, it make the sound of a bass drum and huge crowd clapping to “We Will Rock You.” 🙂
